Spez. 976 Bs

Spez. 976 Bs; Telefunken (ID = 2148637) Military
Spez. 976 Bs; Telefunken (ID = 1774140) Military Spez. 976 Bs; Telefunken (ID = 1774121) Military
Spez. 976 Bs; Telefunken (ID = 1774123) Military Spez. 976 Bs; Telefunken (ID = 1774124) Military
Spez. 976 Bs; Telefunken (ID = 1774126) Military Spez. 976 Bs; Telefunken (ID = 1774128) Military
Spez. 976 Bs; Telefunken (ID = 1774133) Military Spez. 976 Bs; Telefunken (ID = 1774119) Military
Spez. 976 Bs; Telefunken (ID = 1774143) Military Spez. 976 Bs; Telefunken (ID = 1774145) Military
Use red slider bar for more.
Spez. 976 Bs; Telefunken (ID = 1774140) Military
Telefunken: Spez. 976 Bs [Military] ID = 1774140 1400x1232
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spez. 976 Bs, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Ebay auction by user geweih00 181585911999 Lack Frontplatte nicht original.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1941 Category: Military Equipment
Valves / Tubes 4: RV2P800 RV2P800 RV2P800 RV2P800
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 90 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Spez. 976 Bs - Telefunken Deutschland TFK,

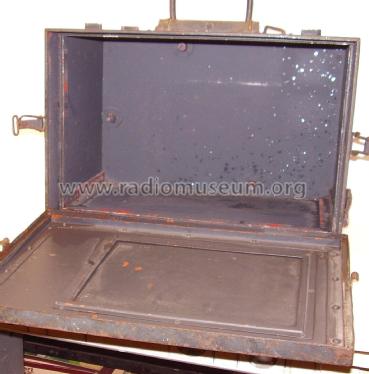

Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 340 x 220 x 210 mm / 13.4 x 8.7 x 8.3 inch
Notes

Sonderausführung des Tornister-Empfänger b ("Berta") Torn. E.b.

Collectors' prices

Model page created by a member from A. See "Data change" for further contributors.
