• Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118056

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 140; 160; 180; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

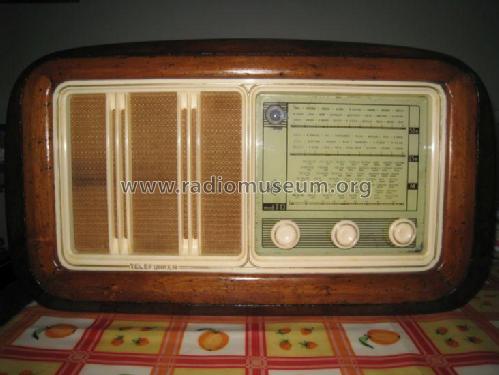

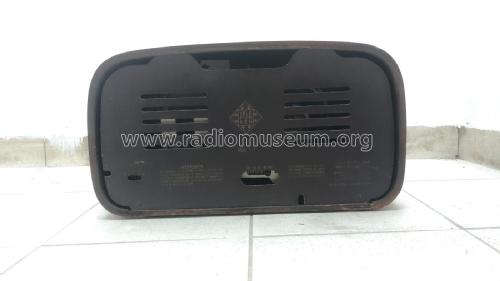

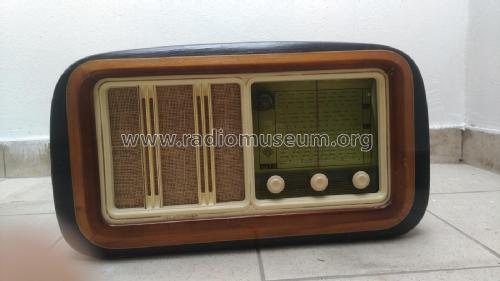

  • Model: T13 - Telefunken Italia, Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 530 x 290 x 210 mm / 20.9 x 11.4 x 8.3 inch
  • Notes
  • Sintonia a permeabilità variabile.
  • Literature/Schematics (1)
  • -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
