T201

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1967–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27114

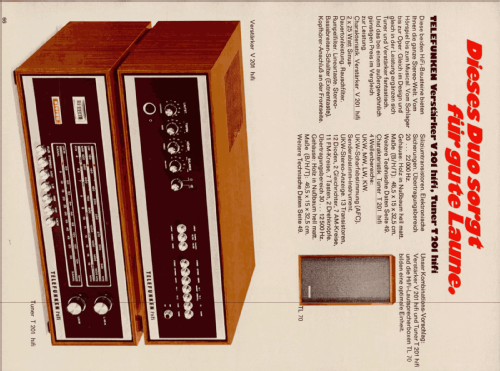

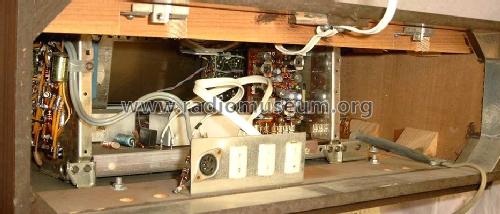

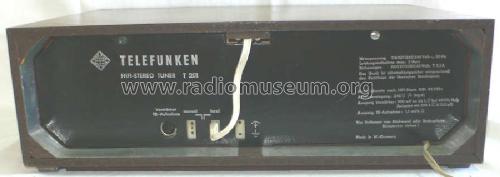

• Picture

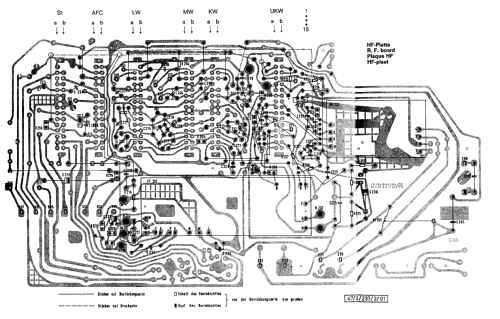

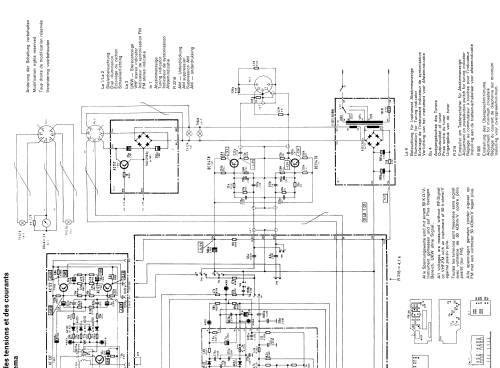

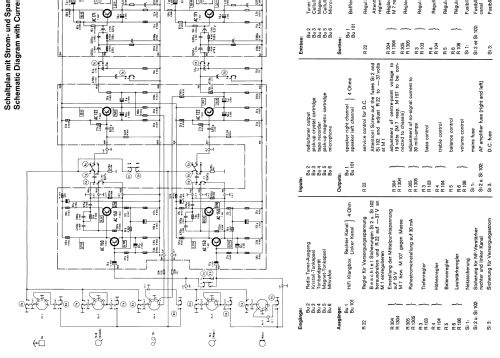

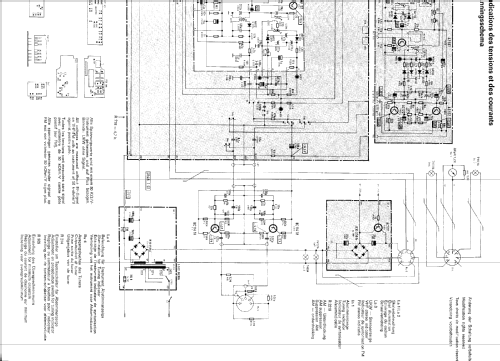

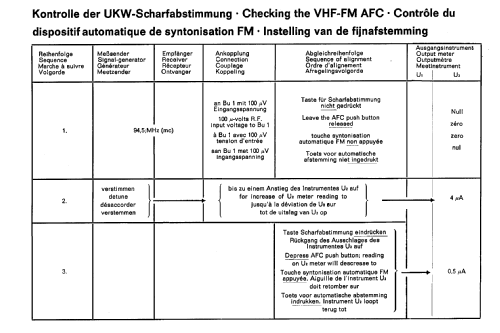

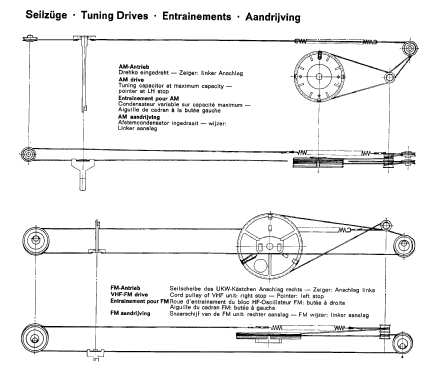

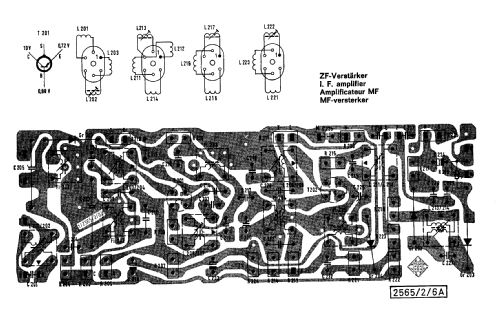

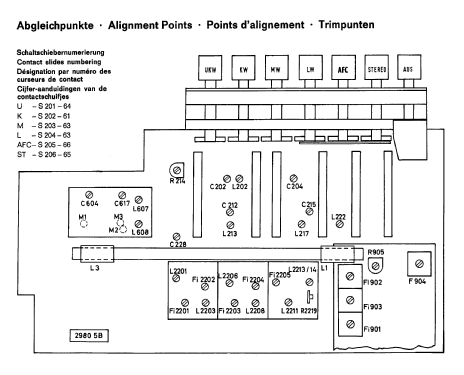

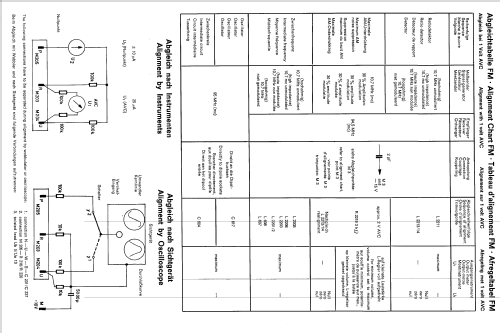

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AF106 AF121 AF138 AF121 AF137 AF137 AF137 AC122 AC122 BC114 BC114 AC117 AA112 BA124 AA133 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: T201 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 465 x 150 x 325 mm / 18.3 x 5.9 x 12.8 inch

• Notes
• Dioden teils mehrfach vorhanden

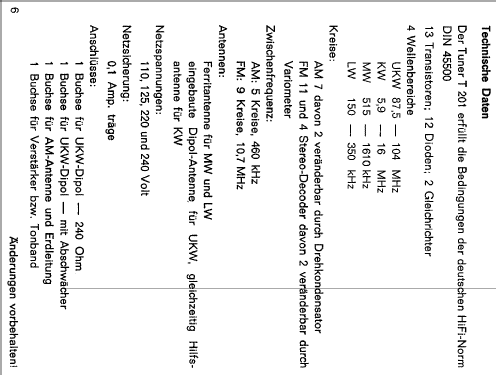

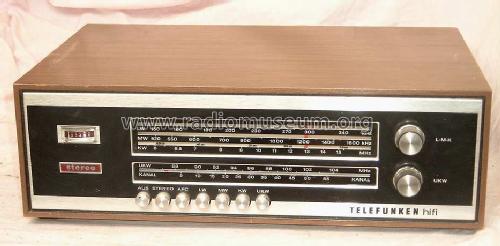

  HiFi-Stereo-Tuner. Abstimmanzeige mit Instrument.

  UKW: 87,5 - 104 MHz
  KW: 5900 - 16000 kHz
  MW: 515 - 1610 kHz
  LW: 150 - 350 kHz


• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• -- Original-techn. papers.
