T22
Use red slider bar for more.
Telefunken Italia,: T22 [Radio] ID = 411401 583x384

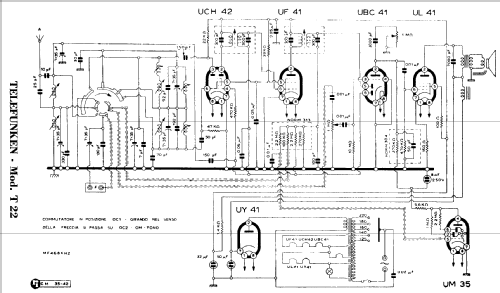

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1953 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: UCH42 UF41 UBC41 UL41 UM35 UY41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast plus 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120-220 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: T22 - Telefunken Italia, Milano |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 530 x 290 x 220 mm / 20.9 x 11.4 x 8.7 inch |
| Mentioned in | -- Collector info (Sammler) |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
