T23 / T23 RSF

T23 / T23 RSF; Telefunken Italia, (ID = 202319) Radio

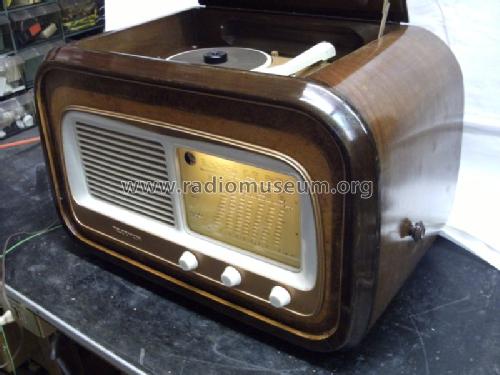

T23 / T23 RSF; Telefunken Italia, (ID = 202312) Radio T23 / T23 RSF; Telefunken Italia, (ID = 1462907) Radio
T23 / T23 RSF; Telefunken Italia, (ID = 1493697) Radio T23 / T23 RSF; Telefunken Italia, (ID = 1493698) Radio
T23 / T23 RSF; Telefunken Italia, (ID = 1493699) Radio T23 / T23 RSF; Telefunken Italia, (ID = 1493701) Radio
T23 / T23 RSF; Telefunken Italia, (ID = 1493704) Radio T23 / T23 RSF; Telefunken Italia, (ID = 1947355) Radio
T23 / T23 RSF; Telefunken Italia, (ID = 1947356) Radio T23 / T23 RSF; Telefunken Italia, (ID = 1947357) Radio
Use red slider bar for more.

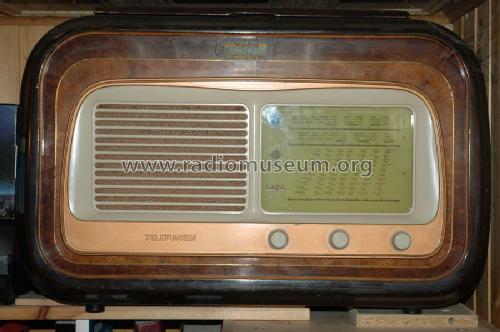

T23 / T23 RSF; Telefunken Italia, (ID = 202312) Radio
Telefunken Italia,: T23 / T23 RSF [Radio] ID = 202312 900x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model T23 / T23 RSF, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UY41 UL41 UBC41 UF41 UM35 UCH42
Main principle Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: T23 / T23 RSF - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Mario Sofia. See "Data change" for further contributors.
