- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196357
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 120; 140; 160; 180; 220; 275 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

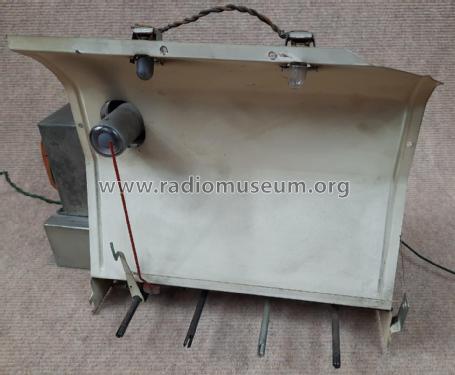

- Model: T35 - Telefunken Italia, Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 380 x 220 mm / 25.6 x 15 x 8.7 inch
- Literature/Schematics (1)
- Il Manuale del Radiomeccanico (Vol.3°)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
