For model T8Z, Telefunken - Krajowe Zaklady, Warszawa

Paese:  Polonia
Produttore / Marca:  Telefunken - Krajowe Zaklady, Warszawa
Anno: 1938/1939 Categoria: Radio (o sintonizzatore del dopoguerra WW2)
Valvole 8: ACH1 EF9 EB2 EF6 EFM1 EL3 EL3 RGN2004
Principio generale Supereterodina (in generale)
Gamme d'onda Onde medie (OM), lunghe (OL) e corte (OC).
Particolarità
Tensioni di funzionamento Alimentazione a corrente alternata (CA) / 220 Volt
Altoparlante 2 altoparlanti
Potenza d'uscita
Radiomuseum.org Modello: T8Z - Telefunken - Krajowe Zaklady,
Materiali Mobile in legno
Forma Soprammobile a cassapanca o cassetta, solitamente con coperchio (NON a leggio)
Dimensioni (LxAxP) 640 x 370 x 290 mm / 25.2 x 14.6 x 11.4 inch
Annotazioni Radio scale visible in miror on botom radio case open lid.
Peso netto 22.6 kg / 49 lb 12.5 oz (49.78 lb)
Prezzo nel primo anno 750.00 zl
Fonte dei dati - - Data from my own collection

Modello inviato da Zenonas Langaitis. Utilizzare "Proponi modifica" per inviare ulteriori dati.



Elenco delle radio e altri apparecchi della Telefunken - Krajowe Zaklady, Warszawa
In questo link sono elencati 36 modelli, di cui 26 con immagini e 14 con schemi.






Discussioni nel forum su questo modello
Telefunken - Krajowe: T8Z
Argomenti: 1 | Articoli: 9
Visite: 9463     Risposte: 8
unknow Telefunken again
Zenonas Langaitis
19.Dec.06
  1

Dear  colleagues, this Telefunken coming to my Radio collection.  Radio used in Lithuania till WW2. Set without back cower. No model nr. on chassis. Any notes.

It was small surprise for me - whan  I dont find any info in internet about  such model. So many unknown radios are !!   And from  famous radio companies...

But, its not easy find radio by picture only.

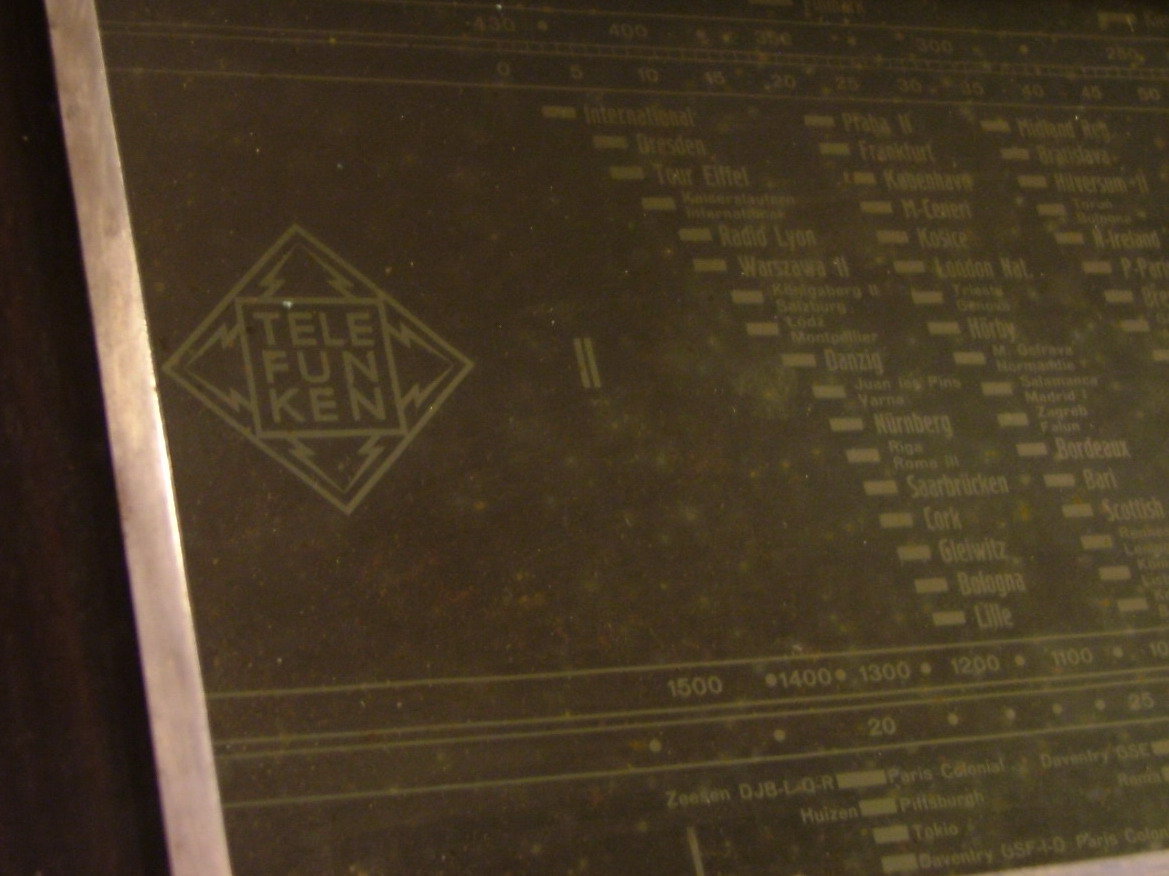

So, please for help. Radio scale is rightly  viewable  in mirror. Realy, all notes on radio scale glass  is  mirror-image.  Fix radio station knobs in front.  Here photos...
