Tango 5449GWK (T5449GWK )

Tango 5449GWK ; Telefunken (ID = 997412) Radio

Tango 5449GWK ; Telefunken (ID = 111345) Radio

Tango 5449GWK ; Telefunken (ID = 7870) Radio

Tango 5449GWK ; Telefunken (ID = 1252501) Radio
Tango 5449GWK ; Telefunken (ID = 969002) Radio Tango 5449GWK ; Telefunken (ID = 1148) Radio
Tango 5449GWK ; Telefunken (ID = 198829) Radio Tango 5449GWK ; Telefunken (ID = 27500) Radio
Tango 5449GWK ; Telefunken (ID = 198825) Radio Tango 5449GWK ; Telefunken (ID = 198832) Radio
Tango 5449GWK ; Telefunken (ID = 198834) Radio Tango 5449GWK ; Telefunken (ID = 534382) Radio
Tango 5449GWK ; Telefunken (ID = 591517) Radio Tango 5449GWK ; Telefunken (ID = 591518) Radio
Use red slider bar for more.
Tango 5449GWK ; Telefunken (ID = 969002) Radio
Telefunken: Tango 5449GWK [Radio] ID = 969002 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tango 5449GWK (T5449GWK ), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410PL UB10000
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Tango 5449GWK - Telefunken Deutschland TFK,
Material Various materials
Dimensions (WHD) 300 x 200 x 190 mm / 11.8 x 7.9 x 7.5 inch
Notes [FS4914]
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 278.00 DM
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funk-Technik (FT) (5004)

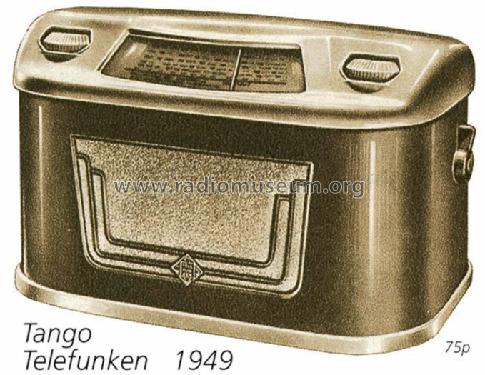

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
