Telefunkon 3/26a

Telefunkon 3/26a; Telefunken (ID = 132144) Radio
Telefunkon 3/26a; Telefunken (ID = 48139) Radio Telefunkon 3/26a; Telefunken (ID = 48140) Radio
Telefunkon 3/26a; Telefunken (ID = 48141) Radio Telefunkon 3/26a; Telefunken (ID = 31471) Radio
Telefunkon 3/26a; Telefunken (ID = 59371) Radio Telefunkon 3/26a; Telefunken (ID = 75258) Radio
Telefunkon 3/26a; Telefunken (ID = 75259) Radio Telefunkon 3/26a; Telefunken (ID = 75260) Radio
Telefunkon 3/26a; Telefunken (ID = 847516) Radio
Use red slider bar for more.
Telefunkon 3/26a; Telefunken (ID = 48139) Radio
Telefunken: Telefunkon 3/26a [Radio] ID = 48139 649x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telefunkon 3/26a, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Spulenschublade auswechselbar

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE064 RE054 RE154
Main principle TRF with regeneration; 1 Special; 2 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 90+4 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Telefunkon 3/26a - Telefunken Deutschland TFK,

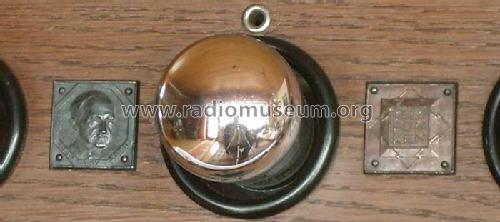

Material Wooden case, TUBES VISIBLE.

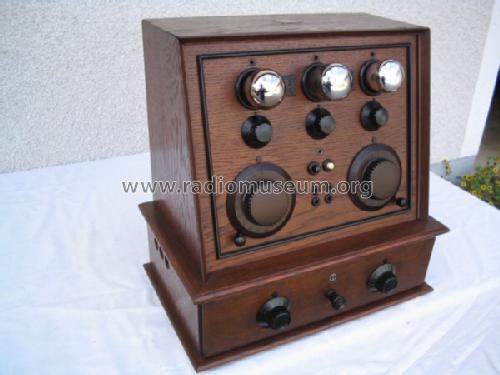

Shape Tablemodel, slant panel.

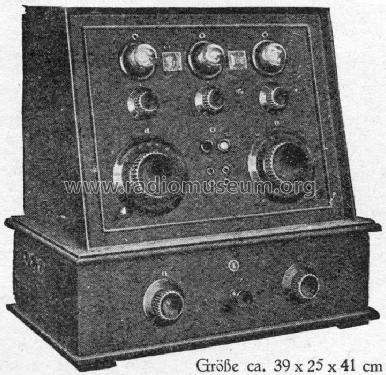

Dimensions (WHD) 390 x 410 x 250 mm / 15.4 x 16.1 x 9.8 inch
Notes oder 2V-Röhren; Reflex [595]
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 250.00 RM
Source of data Vox-Haus, Katalog 1926/1927 / Radiokatalog Band 1, Ernst Erb
Mentioned in Radio Nostalgie
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"
