Tragbarer Peiler 111N E393aN
Use red slider bar for more.

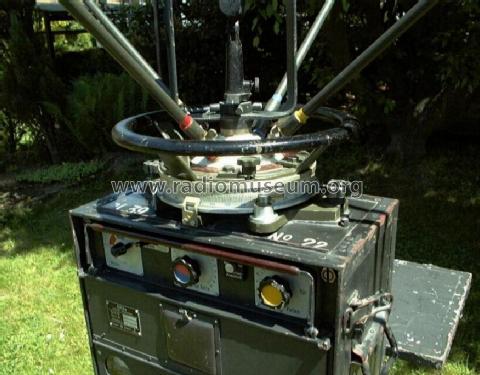

Telefunken: Tragbarer Peiler 111N E393aN [Military] ID = 56517 851x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1937 ? | Category: Military Equipment (not Re, Tr or RXT) | ||||
| Valves / Tubes | 6: RES094 RES094 RES094 RE084k RE084k RE084k |
|---|
| Main principle | Superhet, IF regeneration; ZF/IF 56 kHz; 1 AF stage(s); Super, reaction, but not adjustable |
|---|---|
| Tuned circuits | 4 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / . Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Tragbarer Peiler 111N E393aN - Telefunken Deutschland TFK, |
| Material | Metal case |
| Shape | Miscellaneous shapes - described under notes. |
| Dimensions (WHD) | 1000 x 3720 x 1500 mm / 39.4 x 146.5 x 59.1 inch |
| Notes | Entwickelt von Telefunken, gebaut von Siemens. Verkauft durch Telefunken. Anlage besteht aus Empfänger E393aN, Peilrahmen PR58N, Stativ Z7N und Zubehörtornister Z8N. |
| Net weight (2.2 lb = 1 kg) | 70 kg / 154 lb 3 oz (154.185 lb) |
| External source of data | Handbuch |
Model page created by Alexander Küffer. See "Data change" for further contributors.
