Visiomat III (3)

Visiomat III ; Telefunken (ID = 528238) Television

Visiomat III ; Telefunken (ID = 528239) Television

Visiomat III ; Telefunken (ID = 528240) Television

Visiomat III ; Telefunken (ID = 1644462) Television

Visiomat III ; Telefunken (ID = 1644463) Television

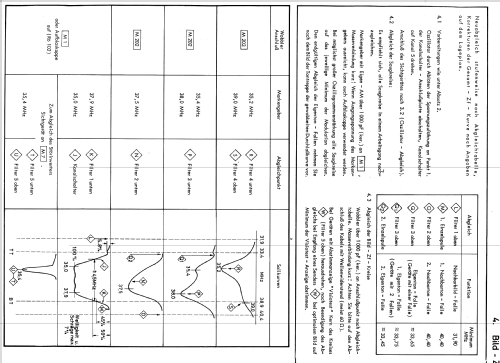

Visiomat III ; Telefunken (ID = 1644464) Television

Visiomat III ; Telefunken (ID = 1644465) Television
Visiomat III ; Telefunken (ID = 370659) Television Visiomat III ; Telefunken (ID = 1765734) Television
Use red slider bar for more.
Visiomat III ; Telefunken (ID = 370659) Television
Telefunken: Visiomat III [Television] ID = 370659 683x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model Visiomat III (3), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: AW53-80
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Visiomat III - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 540 x 490 mm / 24 x 21.3 x 19.3 inch
Notes Technische Daten wie Visiomat II, jedoch 53-cm-Bildröhre.
Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 1'048.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
