Zeitsignal-Empfänger E49
Use red slider bar for more.

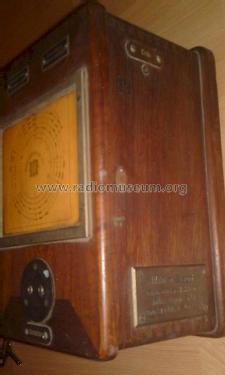

Telefunken: Zeitsignal-Empfänger E49 [Crystal] ID = 1155745 615x450
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1918 ?? | Category: Detector-Radio (Crystal or diode, without tubes/transistors) |
| Main principle | Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Zeitsignal-Empfänger E49 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Miscellaneous shapes - described under notes. |
| Dimensions (WHD) | 200 x 31 x 170 mm / 7.9 x 1.2 x 6.7 inch |
| Notes | Zeitsignal-Empfänger für eine Welle zwischen 1000m und 4000m, an allen Antennen. Wird nach Einstellung verplombt. Vorgänger des E49b mit einfacherer Schaltung. |
| Net weight (2.2 lb = 1 kg) | 4.8 kg / 10 lb 9.2 oz (10.573 lb) |
| Literature/Schematics (1) | Telefunken-Stationen und -Geräte, Anfang 1919 (das "Blaue Buch") |
Model page created by Nikolaus Löwe. See "Data change" for further contributors.
