• Year
  • 1944–1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 101808

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 120/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

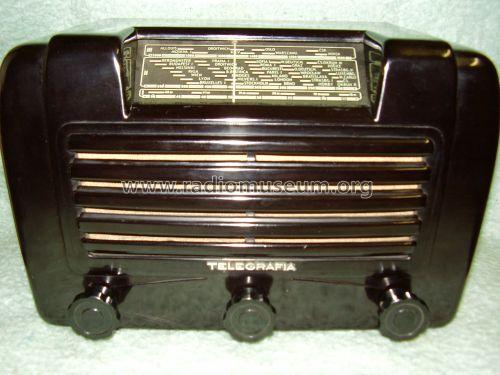

  • Model: Talisman - Telegrafia, akc. spol., Praha-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 258 x 169 x 140 mm / 10.2 x 6.7 x 5.5 inch
  • Notes

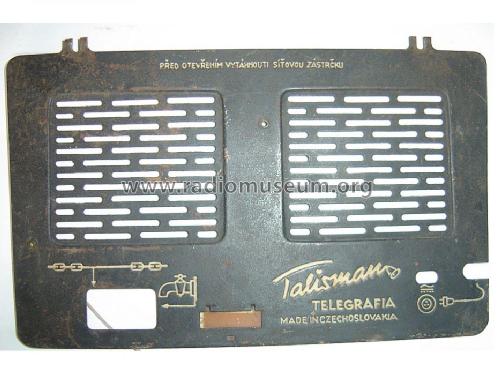

  • This model has been developed and the production began in Telegrafia. After nationalization the prodcution ran under Tesla. The difference is only on the box, brand sign Tesla or Telegrafia Metal back cover
  • Price in first year of sale
  • 2,820.00 Kc
  • Author
  • Model page created by Gabriel Toth. See "Data change" for further contributors.
