Triumf 100
Use red slider bar for more.
Telegrafia, akc.: Triumf 100 [Radio] ID = 1130718 534x433

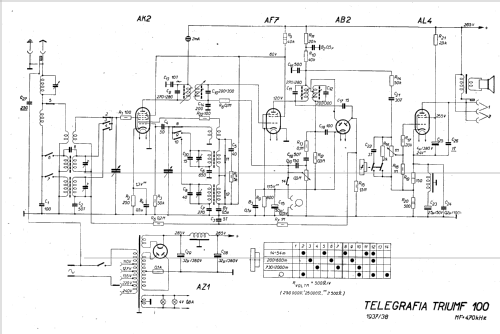

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1937/1938 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: AK2 AF7 AB2 AL4 AZ1 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 470 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | -Loudspeaker incorporated, but system not known. |
| Power out | |
| from Radiomuseum.org | Model: Triumf 100 - Telegrafia, akc. spol., Praha- |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 555 x 310 x 230 mm / 21.9 x 12.2 x 9.1 inch |
| Notes | Reflex; Zeiger-Abstimmhilfe |
| Collectors' prices | |
| External source of data | Erb |
| Source of data | Ceskoslovenske prijimace 1933-1945, Baudys 1947 |
