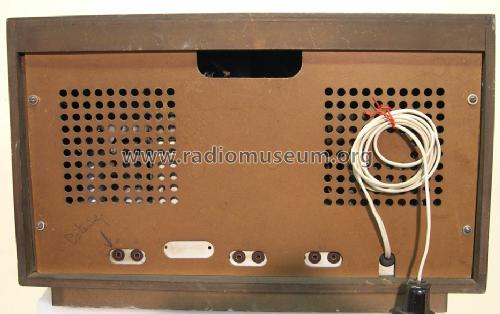

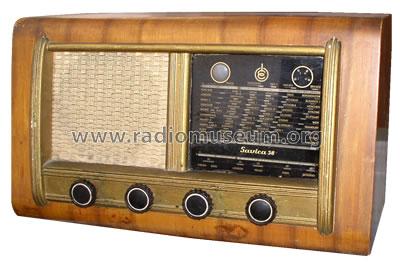

Savica 56 RA27A

• Country
• Yugoslavia

• Manufacturer / Brand
• Telekomunikacije Ljubljana

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91134

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM11

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Savica 56 RA27A - Telekomunikacije Ljubljana

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 290 x 240 mm / 18.1 x 11.4 x 9.4 inch

• Notes
• Das Gerät wurde auch mit EM 34 gebaut.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
