Soča 60A RA54

Soča 60A RA54; Telekomunikacije (ID = 1435818) Radio
Soča 60A RA54; Telekomunikacije (ID = 1357035) Radio Soča 60A RA54; Telekomunikacije (ID = 1357036) Radio
Soča 60A RA54; Telekomunikacije (ID = 1357037) Radio Soča 60A RA54; Telekomunikacije (ID = 1357038) Radio
Soča 60A RA54; Telekomunikacije (ID = 1401815) Radio Soča 60A RA54; Telekomunikacije (ID = 1401817) Radio
Use red slider bar for more.

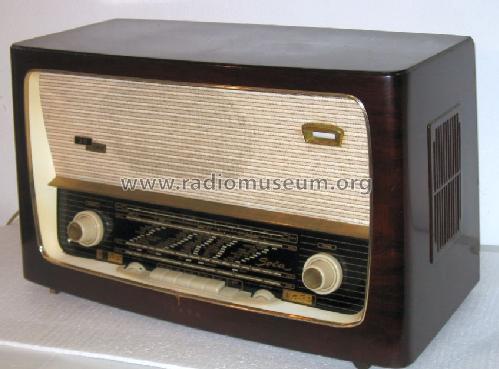

Soča 60A RA54; Telekomunikacije (ID = 1357035) Radio
Telekomunikacije: Soča 60A RA54 [Radio] ID = 1357035 800x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Soča 60A RA54, Telekomunikacije Ljubljana

Country:  Yugoslavia
Manufacturer / Brand:  Telekomunikacije Ljubljana
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Soča 60A RA54 - Telekomunikacije Ljubljana
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 380 x 330 mm / 21.7 x 15 x 13 inch
Notes

Same as Triglav 60A, but without Record Player

Model page created by Danko Tkalec. See "Data change" for further contributors.



All listed radios etc. from Telekomunikacije Ljubljana
Here you find 23 models, 21 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
