Rubis ; Telfa; De Pinte (ID = 1399630) Radio
Telfa; De Pinte: Rubis [Radio] ID = 1399630 933x528
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rubis, Telfa; De Pinte

Country:  Belgium
Manufacturer / Brand:  Telfa; De Pinte
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Rubis - Telfa; De Pinte
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 345 x 280 mm / 25.6 x 13.6 x 11 inch
Notes

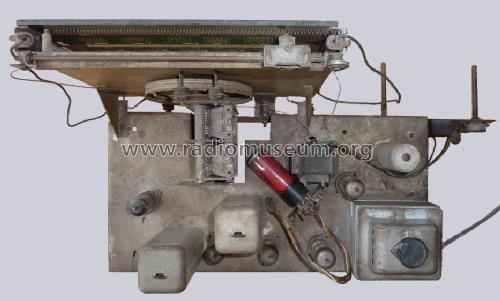

In veneered wooden cabinet with white plastic knobs, two rounded wooden ornaments on the sides and a white border around the speaker and the wavelength scale. The large glass wavelength scale is lit by four scale lamps at every corner. In the middle of the front there are two semicircular brass profiles and a brass rim around the tuning indicator. For medium wave, long wave and short wave eception.The knobs from left to right: tone control, on/off/volume, tuning, wave length switch. The chassis for this brand were probably made by Belgian radio factory Barco.

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Telfa; De Pinte
Here you find 6 models, 6 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
