Transitradio 111 FM (1+1+1+FM)

Teppaz; Lyon

  • Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139750

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 480/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Power out
  • 1 W (max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Transitradio 111 FM - Teppaz; Lyon
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 325 x 150 x 255 mm / 12.8 x 5.9 x 10 inch
  • Notes
  • Electrophone avec radio, version 111FM: OC+PO+GO+FM. Tourne-disques 4 vitesses. HP 17 cm haute fidélité. Contrôle de tonalité. Bande étalée.

    Adaptable à tous secteurs alternatifs avec système Alimentation Secteur, de 100 à 250 V, 50 ou 60 Hz, prend la place du tiroir à piles.

    3 coloris: gris/bleu, rouge/noir havane/maron. Poids sans piles.

  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Mentioned in

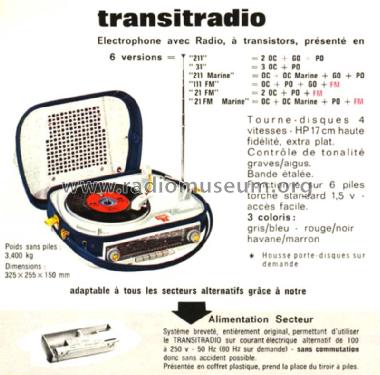

  • -- Original prospect or advert
  • Author
  • Model page created by Jürgen Bühler. See "Data change" for further contributors.
