• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 109210

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

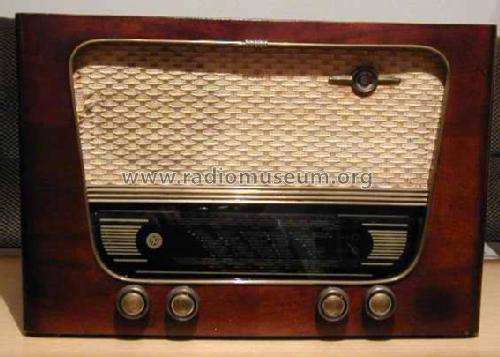

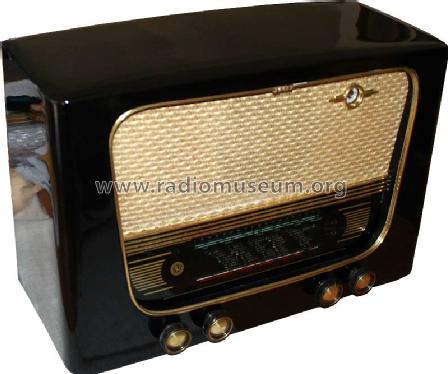

  • Model: Tesla 57B - Radioindustrija Nikola Tesla;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 535 x 360 x 215 mm / 21.1 x 14.2 x 8.5 inch
  • Notes
  • Some models have two speakers.

  • Net weight (2.2 lb = 1 kg)
  • 11.2 kg / 24 lb 10.7 oz (24.67 lb)
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
