• Country
• Yugoslavia

• Manufacturer / Brand
• Radioindustrija Nikola Tesla; Beograd

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124704

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM4 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Tesla 58B - Radioindustrija Nikola Tesla;

• Notes
• Siehe auch Modell 58A.

• Literature/Schematics (1)

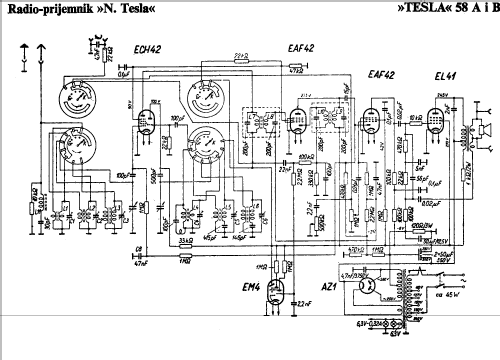

• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
