• Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 110331
    • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 15
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

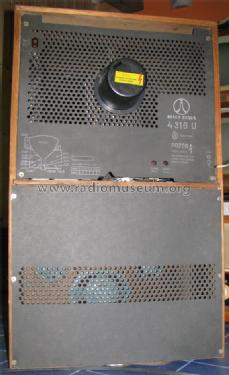

  • Model: Devin 4316U - Tesla; Praha, Bratislava etc.
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 530 x 1100 x 560 mm / 20.9 x 43.3 x 22 inch
  • Notes
  • 43 cm B/W TV based on Tesla 4102U Manes chassis, OIRT VHF Tuner (set of six channels - depend on submodel type), horizontal deflection uses Synchroguide, some tubes equipped more than one times.
  • Net weight (2.2 lb = 1 kg)
  • 37.5 kg / 82 lb 9.6 oz (82.599 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
