Millivoltmeter BM386
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1963 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 165637
-
- Brand: Supraphon

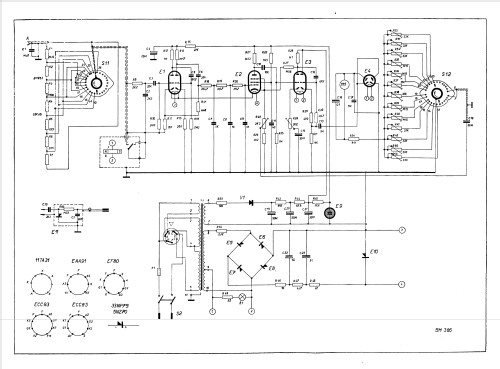

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 120; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Millivoltmeter BM386 - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 305 x 230 x 180 mm / 12 x 9.1 x 7.1 inch
- Notes
- Voltage range: 4mV - 10V in 7 subranges. Frequency range 30kHz - 1500MHz.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
