Rytmus II 494U

Rytmus II 494U; Tesla; Praha, (ID = 94007) Radio

Rytmus II 494U; Tesla; Praha, (ID = 94008) Radio

Rytmus II 494U; Tesla; Praha, (ID = 94009) Radio
Rytmus II 494U; Tesla; Praha, (ID = 2361484) Radio Rytmus II 494U; Tesla; Praha, (ID = 2361485) Radio

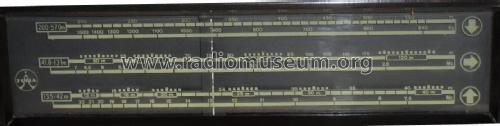

Rytmus II 494U; Tesla; Praha, (ID = 2361486) Radio Rytmus II 494U; Tesla; Praha, (ID = 2361487) Radio
Use red slider bar for more.

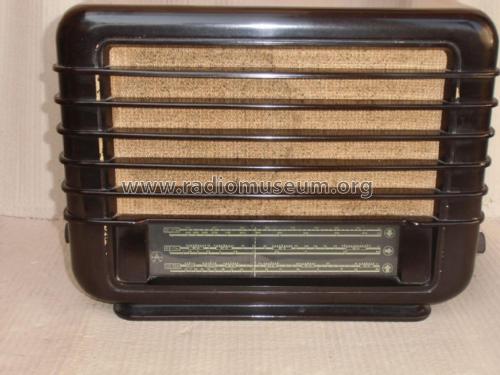

Rytmus II 494U; Tesla; Praha, (ID = 2361484) Radio
Tesla; Praha,: Rytmus II 494U [Radio] ID = 2361484 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rytmus II 494U, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Rytmus II 494U - Tesla; Praha, Bratislava etc.
Material Bakelite case
Shape Tablemodel, with any shape - general.
Notes Audio output power 0,75W only at 125V DC.
Mentioned in Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

Model page created by Gabriel Toth. See "Data change" for further contributors.
