- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71822
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

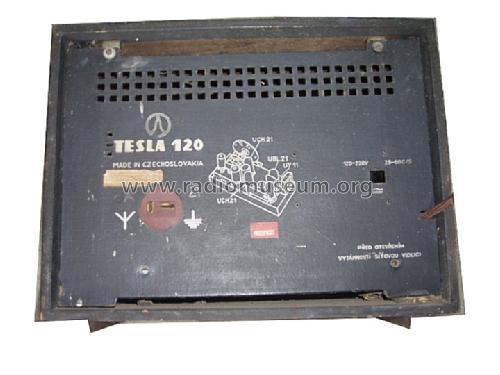

- Model: T120 - Tesla; Praha, Bratislava etc.

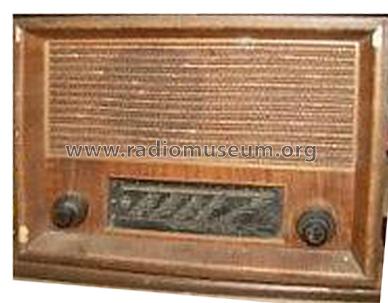

- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 290 x 235 mm / 14.6 x 11.4 x 9.3 inch
- Notes
- Audio output power 0,5W only at 120V DC
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
