• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1954–1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336612

• • Brand: Supraphon

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

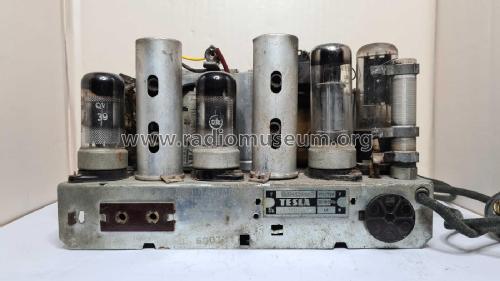

• Model: Talisman 310U-2a - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 190 x 150 mm / 12.6 x 7.5 x 5.9 inch

• Notes

• Exportmodell Gehäuse wie 309U

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Author
• Model page created by Kees Smit. See "Data change" for further contributors.
