Vltava 406U
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72558
-
- Brand: Supraphon
http://www.radiomuseum-croatia.com/
http://www.radiomuseum-croatia.com/
http://www.radiomuseum-croatia.com/
A restauro terminato
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 120-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Vltava 406U - Tesla; Praha, Bratislava etc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 300 x 172 mm / 16.1 x 11.8 x 6.8 inch
- Notes

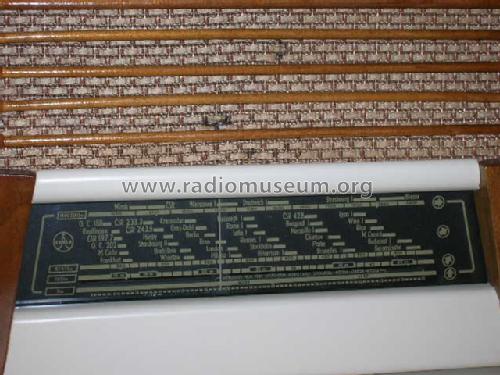

- Variant 406U-2 has slightly different tuning scale.
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
