• Country
• Australia

• Manufacturer / Brand
• Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165986

• • Brand: Tasma

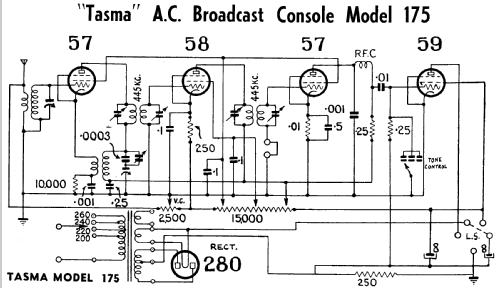

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 57 58 57 59 80

• Main principle
• Superheterodyne (common); ZF/IF 445 kHz; 1 AF stage(s); Anode bend detection

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200; 220; 240; 260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

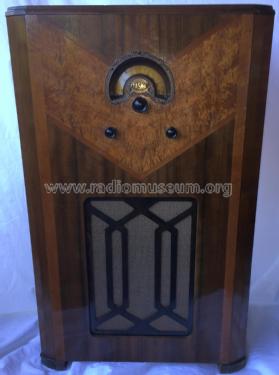

• Model: Chevron 175 - Thom & Smith Pty. Ltd.Tasma;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• AC powered, 5 Valve superhet with Autodyne converter and anodebend detection.

  Cabinet made by Beale.



• Price in first year of sale
• 24.00 Aus£

• Literature/Schematics (1)
• - - Manufacturers Literature (Tasma Service Data, Drawing No. 77.)

• Literature/Schematics (2)
• Radio Trade Annual of Australia (7th Edition 1939, Page 353.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
