Baby 675 (M675)

Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176740
    • Brand: Tasma

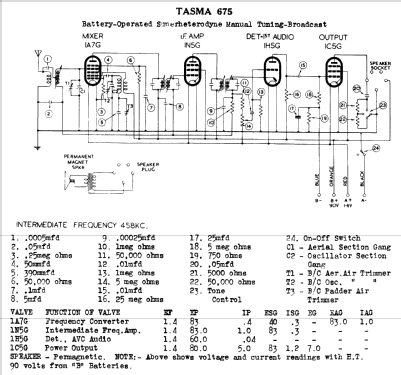

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 90 & 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Baby 675 - Thom & Smith Pty. Ltd.Tasma;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 282 x 327 x 235 mm / 11.1 x 12.9 x 9.3 inch
  • Price in first year of sale
  • 19.95 AUS £
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. III
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Data, Drawing No. 525.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
