- Country
- Australia
- Manufacturer / Brand
- Thom & Smith Pty. Ltd.(Tasma);Mascot, NSW
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186131
-
- Brand: Tasma
eBay Australia, item number:153906845167
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

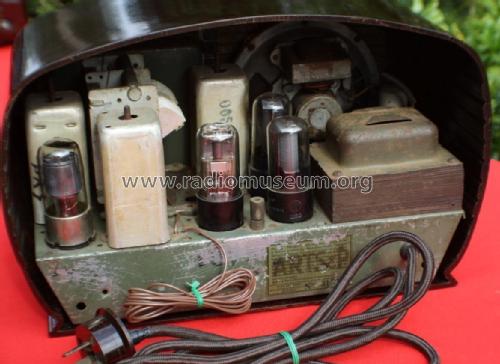

- Model: Baby 1010 - Thom & Smith Pty. Ltd.Tasma;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 325 x 205 x 180 mm / 12.8 x 8.1 x 7.1 inch
- Notes
-
The price below is for the walnut or mahogany bakelite cabinet. It was also available in other colours for £27/10/-.
See also B.G.E. Genalex version, Dapper Model BC1010.
- Price in first year of sale
- 27.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VI
- Mentioned in
- Mingay's "Radio Diagram & I.F. Index
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 457.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
