Sintonizador Estereofónico S-4001 6 teclas preselectoras

Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

  • Year
  • 1982 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 317955

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 14
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sintonizador Estereofónico S-4001 [6 teclas preselectoras] - Thomson Española S.A.; Thomson
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 100 x 210 mm / 17.3 x 3.9 x 8.3 inch
  • Notes
  • Thomson Española S.A. Sintonizador Estereofónico S-4001 con 6 presintonías

    Véase:

    Listado un único semiconductor por tipo

  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)

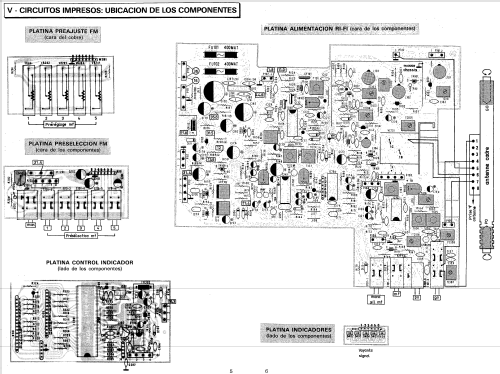

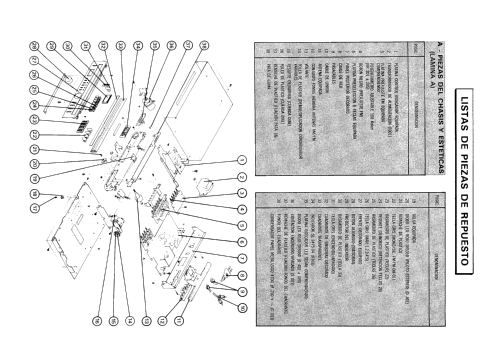

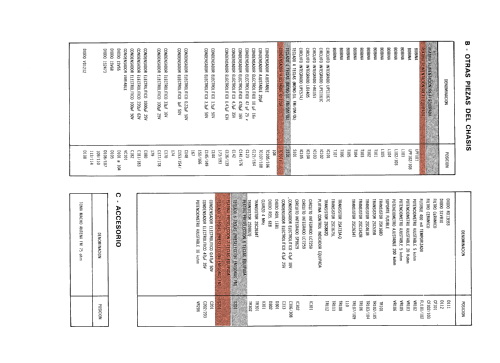

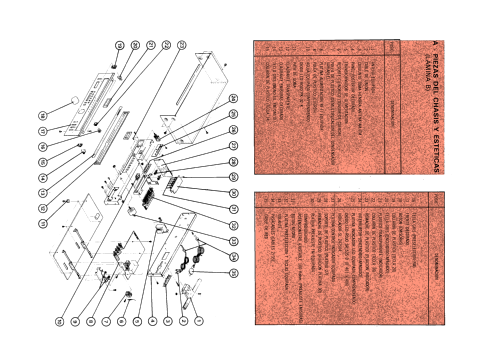

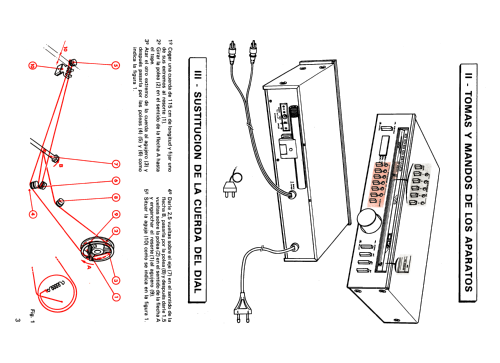

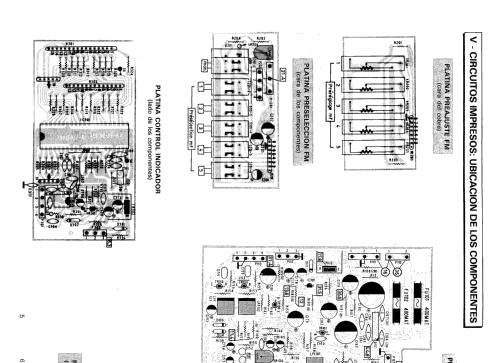

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
