Mars 143

Mars 143; TO-R Radio A/S; Vanl (ID = 1598168) Radio

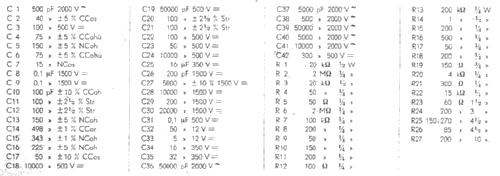

Mars 143; TO-R Radio A/S; Vanl (ID = 1598169) Radio
Mars 143; TO-R Radio A/S; Vanl (ID = 2351636) Radio Mars 143; TO-R Radio A/S; Vanl (ID = 1330450) Radio
Use red slider bar for more.

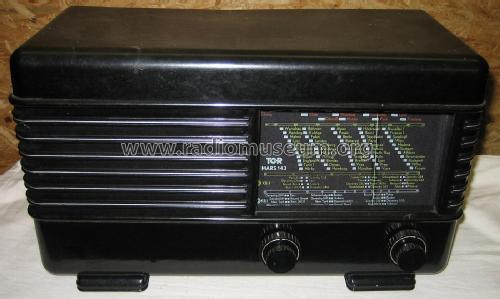

Mars 143; TO-R Radio A/S; Vanl (ID = 2351636) Radio
TO-R Radio A/S; Vanl: Mars 143 [Radio] ID = 2351636 1400x839
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mars 143, TO-R Radio A/S; Vanløse:
Gesehen im Bestand des Museums Zeit(T)räume in Walldürn. Eigenes Foto.

Country:  Denmark
Manufacturer / Brand:  TO-R Radio A/S; Vanløse
Brand

Tor
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common); ZF/IF 444 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110 - 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Mars 143 - TO-R Radio A/S; Vanløse
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 370 x 220 x 170 mm / 14.6 x 8.7 x 6.7 inch
Notes

2 Skalenlampen 18V/0,1A.
KW-Bänder: 16-30m, 30-50m.
Leistungsaufnahme: 38W.

Price in first year of sale 315.00 DKK
Mentioned in Populaer Radio 1942, August, S.192-93

Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
