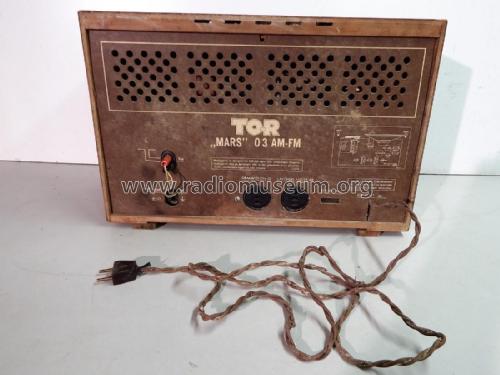

Mars O3 AM-FM
Use red slider bar for more.
TO-R Radio A/S; Vanl: Mars O3 AM-FM [Radio] ID = 2123150 1100x825
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Tor | ||||
|---|---|---|---|---|---|
| Year: 1955 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: UCC85 UCH81 UCF80 UABC80 UM4 UL84 | ||||
| Semiconductors (the count is only for transistors) | Selen |
| Main principle | Superheterodyne (common); ZF/IF 447/10400 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | AC/DC-set / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Mars O3 AM-FM - TO-R Radio A/S; Vanløse |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
