Merkur 243

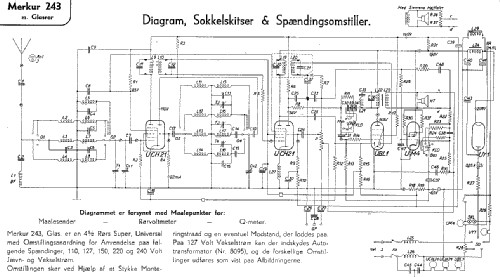

Merkur 243; TO-R Radio A/S; Vanl (ID = 1597510) Radio

Merkur 243; TO-R Radio A/S; Vanl (ID = 1597511) Radio
Merkur 243; TO-R Radio A/S; Vanl (ID = 243374) Radio Merkur 243; TO-R Radio A/S; Vanl (ID = 1330448) Radio
Use red slider bar for more.
Merkur 243; TO-R Radio A/S; Vanl (ID = 243374) Radio
TO-R Radio A/S; Vanl: Merkur 243 [Radio] ID = 243374 386x230
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur 243, TO-R Radio A/S; Vanløse

Country:  Denmark
Manufacturer / Brand:  TO-R Radio A/S; Vanløse
Brand

Tor
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL1 UY1 UM4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Merkur 243 - TO-R Radio A/S; Vanløse
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 300 x 250 mm / 21.3 x 11.8 x 9.8 inch
Source of data -- Collector info (Sammler)
Mentioned in Populaer Radio, 1942, August, S.193

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from TO-R Radio A/S; Vanløse
Here you find 74 models, 63 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
