Merkur 245 UCH21

Merkur 245; TO-R Radio A/S; Vanl (ID = 1645344) Radio

Merkur 245; TO-R Radio A/S; Vanl (ID = 1645345) Radio
Merkur 245; TO-R Radio A/S; Vanl (ID = 1645057) Radio Merkur 245; TO-R Radio A/S; Vanl (ID = 1645570) Radio
Merkur 245; TO-R Radio A/S; Vanl (ID = 1645571) Radio Merkur 245; TO-R Radio A/S; Vanl (ID = 1645572) Radio
Merkur 245; TO-R Radio A/S; Vanl (ID = 1645573) Radio
Use red slider bar for more.
Merkur 245; TO-R Radio A/S; Vanl (ID = 1645057) Radio
TO-R Radio A/S; Vanl: Merkur 245 [Radio] ID = 1645057 933x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur 245 UCH21, TO-R Radio A/S; Vanløse:
aus ebay, #251481171646, Verkäufer moseskov

Country:  Denmark
Manufacturer / Brand:  TO-R Radio A/S; Vanløse
Brand

Tor
Year: 1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL21 UY1 UM4
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Merkur 245 [UCH21] - TO-R Radio A/S; Vanløse
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 310 x 290 mm / 21.7 x 12.2 x 11.4 inch
Notes

TO-R Merkur 245
was manufactured with different tube complements.
Can be equipped with autotransformer for AC-only operation at 127 V.

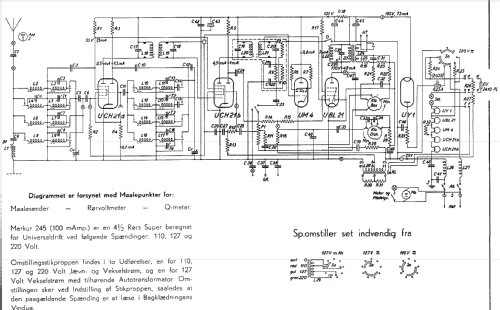

Mentioned in -- Schematic

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
