Venus F2-AM

Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126349) Radio

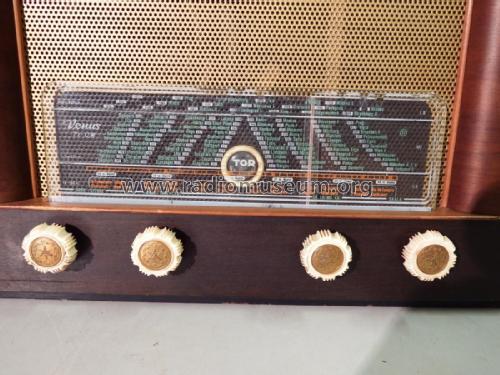

Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126345) Radio Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126346) Radio
Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126347) Radio Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126348) Radio
Use red slider bar for more.

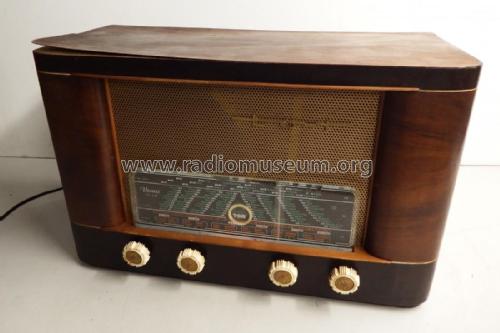

Venus F2-AM; TO-R Radio A/S; Vanl (ID = 2126345) Radio
TO-R Radio A/S; Vanl: Venus F2-AM [Radio] ID = 2126345 1100x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model Venus F2-AM, TO-R Radio A/S; Vanløse:
Image taken from polish online auction portal .allegro.pl. Auction number: 6855357956

Country:  Denmark
Manufacturer / Brand:  TO-R Radio A/S; Vanløse
Brand

Tor
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UM4 UL41
Semiconductors (the count is only for transistors) Selen
Main principle Superheterodyne (common); ZF/IF 447 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Venus F2-AM - TO-R Radio A/S; Vanløse
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 320 x 240 mm / 19.7 x 12.6 x 9.4 inch
Source of data -- Schematic

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
