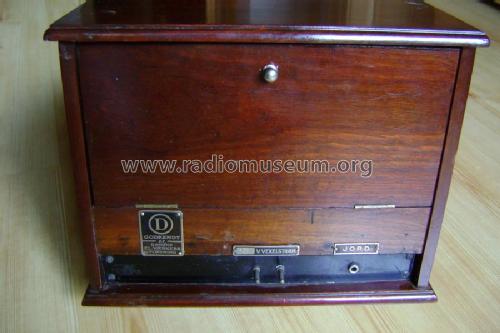

Togafon EJ134

Togafon EJ134; Toga brand; (ID = 619490) Radio Togafon EJ134; Toga brand; (ID = 619494) Radio
Togafon EJ134; Toga brand; (ID = 619491) Radio Togafon EJ134; Toga brand; (ID = 619492) Radio
Use red slider bar for more.
Togafon EJ134; Toga brand; (ID = 619490) Radio
Toga brand;: Togafon EJ134 [Radio] ID = 619490 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Togafon EJ134, Toga (brand); Kobenhavn

Country:  Denmark
Manufacturer / Brand:  Toga (brand); Kobenhavn
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: B443 A630
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Togafon EJ134 - Toga brand; Kobenhavn
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 210 x 220 x 280 mm / 8.3 x 8.7 x 11 inch
Literature/Schematics (1) -- Schematic

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Toga (brand); Kobenhavn
Here you find 5 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
