Tondiamant 58M (W197, W1177)

Tondiamant 58M ; Tonfunk GmbH; (ID = 406629) Radio

Tondiamant 58M ; Tonfunk GmbH; (ID = 406712) Radio

Tondiamant 58M ; Tonfunk GmbH; (ID = 406711) Radio
Tondiamant 58M ; Tonfunk GmbH; (ID = 978745) Radio Tondiamant 58M ; Tonfunk GmbH; (ID = 978748) Radio
Tondiamant 58M ; Tonfunk GmbH; (ID = 978749) Radio Tondiamant 58M ; Tonfunk GmbH; (ID = 469887) Radio
Tondiamant 58M ; Tonfunk GmbH; (ID = 978742) Radio Tondiamant 58M ; Tonfunk GmbH; (ID = 978743) Radio

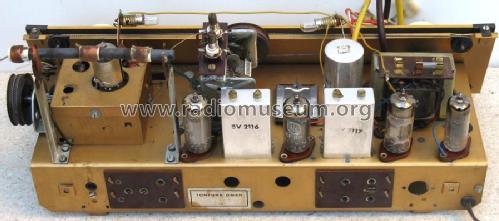

Tondiamant 58M ; Tonfunk GmbH; (ID = 978744) Radio Tondiamant 58M ; Tonfunk GmbH; (ID = 978747) Radio
Tondiamant 58M ; Tonfunk GmbH; (ID = 978750) Radio Tondiamant 58M ; Tonfunk GmbH; (ID = 1360791) Radio
Use red slider bar for more.
Tondiamant 58M ; Tonfunk GmbH; (ID = 978745) Radio
Tonfunk GmbH;: Tondiamant 58M [Radio] ID = 978745 900x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tondiamant 58M (W197, W1177), Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Tondiamant 58M - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 425 x 250 x 200 mm / 16.7 x 9.8 x 7.9 inch
Notes
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 269.00 DM
External source of data E. Erb 3-907007-36-0
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
