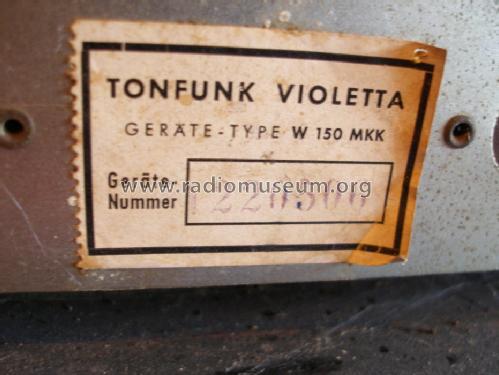

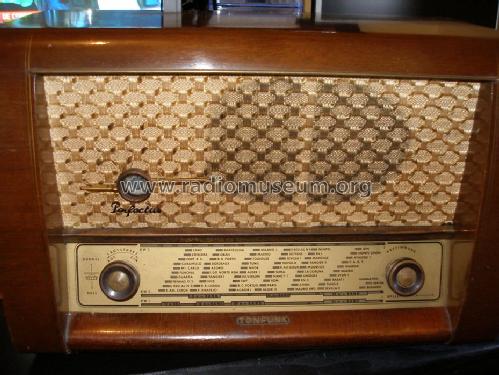

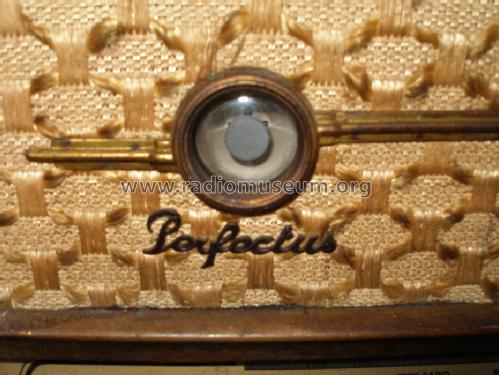

Violetta Perfectus W150 MKK
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197231
Original restaurado
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Violetta Perfectus W150 MKK - Tonfunk GmbH; Karlsruhe
- Shape
- Tablemodel, with any shape - general.
- Notes
- Tonfunk Violetta Perfectus W150 MKK ist ein Exportmodell.
Bedienhinweise auf Skala in deutsch, Rückwand zeigt
Hinweis "Nach Telefunken-Schutzrechten gefertigt".
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Alvaro Garcia Garcia. See "Data change" for further contributors.
