5 Band Radio R1500

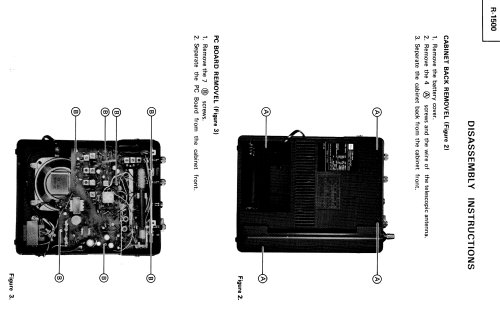

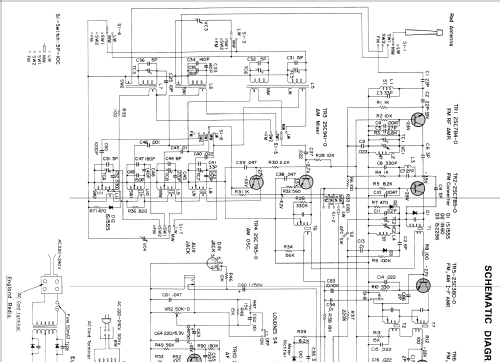

5 Band Radio R1500; Toshiba Corporation; (ID = 1572528) Radio

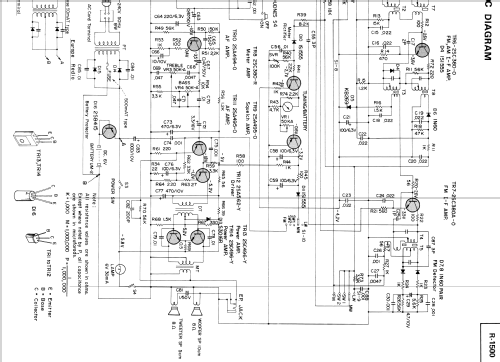

5 Band Radio R1500; Toshiba Corporation; (ID = 1572529) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573037) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573156) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573157) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573158) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573159) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573154) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573155) Radio

5 Band Radio R1500; Toshiba Corporation; (ID = 1573167) Radio
5 Band Radio R1500; Toshiba Corporation; (ID = 1402940) Radio 5 Band Radio R1500; Toshiba Corporation; (ID = 554206) Radio
5 Band Radio R1500; Toshiba Corporation; (ID = 1402941) Radio 5 Band Radio R1500; Toshiba Corporation; (ID = 1402942) Radio
5 Band Radio R1500; Toshiba Corporation; (ID = 1402943) Radio
Use red slider bar for more.
5 Band Radio R1500; Toshiba Corporation; (ID = 1402940) Radio
Toshiba Corporation;: 5 Band Radio R1500 [Radio] ID = 1402940 531x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5 Band Radio R1500, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: 2SA494 2SC784 2SC785 2SC380 2SC380 2SC380 2SC380 2SC941 2SC785 2SA495 2SA495 2SA562 2SC496 2SC496 2SB415
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz; 4 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / 4 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 5 Band Radio R1500 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 204 x 255 x 88 mm / 8 x 10 x 3.5 inch
Notes

KW1 (5.95-6.2MHz) und KW2 (6.2-18MHz).
Höhenregler, Bassregler, schaltbare automatische Frequenz-Kontrolle, Skalenbeleuchtung, Loudness-Schalter, 2-Wege-Anzeige-Instrument für Tuning und Batterie.
Zubehör: Trageriemen, Netzkabel und Ohrhörer.

14 Transistoren und 15 Dioden, ein Transistor wird als Diode zur Trennung von Netz- und Batteriespannung benutzt. Für FM gibt es eine Rauschsperre, 2 Lautsprecher: Tieftöner (10cm) und Hochtöner (5cm)

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
