Trans Continents: 26 [Radio] ID = 1731216 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||

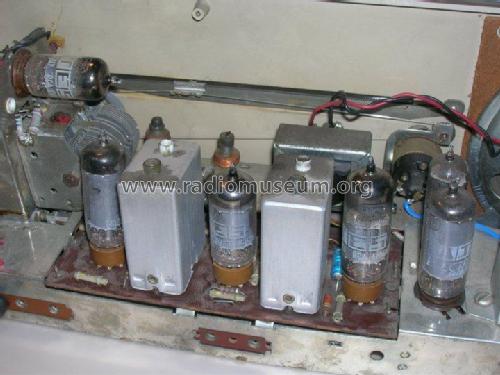

| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 35D5 35X4 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 26 - Trans Continents Prandoni; |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Notes | Radioricevitore soprammobile onde medie e modulazione di frequenza (limitata a 102 Mhz) con possibilità di ascolto dell'audio TV, canali VHF |
Model page created by Enrico Bonisolo. See "Data change" for further contributors.
