KW-60 Deluxe AM-FM Stereo Multiplex Receiver

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700561) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700562) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700556) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700559) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700560) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700557) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700558) Radio

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 700555) Radio
KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698519) Radio KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698518) Radio

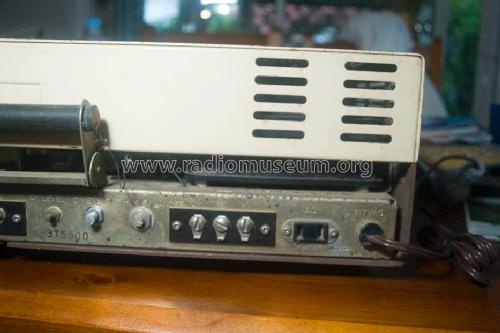

KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698522) Radio KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698523) Radio
KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698525) Radio
Use red slider bar for more.
KW-60 Deluxe AM-FM Stereo Multiplex Receiver ; Trio-Kenwood (ID = 698519) Radio
Trio-Kenwood: KW-60 Deluxe AM-FM Stereo Multiplex Receiver [Radio] ID = 698519 933x319
Select picture or schematic to display from thumbnails on the right and click for download.
For model KW-60 Deluxe AM-FM Stereo Multiplex Receiver, Trio-Kenwood Electronic Inc.; Komagane

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 23: ECC85 ECC85 EF94 EF94 EF94 EF94 EF94 ECC82 ECC82 ECC82 EK90 ECC83 ECC83 ECC83 ECC83 EF93 EF93 7189 7189 7189 7189 EZ81 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 5 AF stage(s)
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: KW-60 Deluxe AM-FM Stereo Multiplex Receiver - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 145 x 350 mm / 19.7 x 5.7 x 13.8 inch
Notes

This Hi-Fi unit also features switcheable wide AM tuning for better AM frequency response, and FM MPX stereo with Loudness switch. It has very good audio and RF performance.

Source of data -- Schematic

Model page created by Roger Brinkman. See "Data change" for further contributors.
