- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1979–1985 ?
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 73767
-
- alternative name: Trio Corp.
- Brand: Jennen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 64
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 48000/455 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: R-1000 - Kenwood, Trio-Kenwood Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 115 x 218 mm / 11.8 x 4.5 x 8.6 inch
- Notes
- Kenwood Receiver R-1000.
Covering 200-30000 kHz; Modes: SSB, CW, AM; with timer/clock function; external 12-V-Power-Supply possible.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Price in first year of sale
- 1,090.00 DM
- Source of data
- Shortwave Receivers - Past & Present (3rd ed.)
- Mentioned in
- Funkschau (Heft 13 /Juni 1981 Seite 73 ff Betriebserprobung)
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
- Other Models
-
Here you find 880 models, 813 with images and 249 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Kenwood, Trio-Kenwood Inc.; Komagane
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Kenwood, Trio-: R-1000
Threads: 1 | Posts: 1
Hallo Radiofreunde,

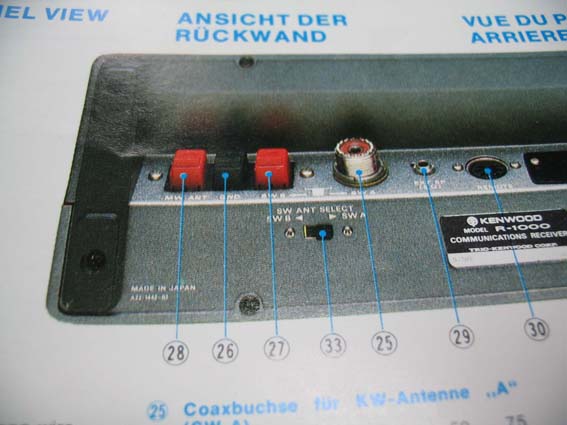

wer kann mir bitte helfen? Ich besitze einen KENWOOD R-1000 Nachrichtenempfänger. Der Vorbesitzer hat die drei Klemmanschlüsse links (rot-schwarz-rot), warum auch immer, entfernt und gegen andere Anschlüsse getauscht. Ich möchte das Gerät wieder in den Originalzustand bringen und suche daher diesen Klemmensatz.
Hat jemand zufällig so einen übrig oder weiß jemand, wo ich ihn erwerben kann?
Bitte sehen Sie auch das anliegende Foto!
Danke im voraus!
Joachim Röhling
Attachments
- R-1000_Rückwand-Detail Kopie (35 KB)
Joachim Röhling, 14.Dec.07
