TS-930S

TS-930S; Trio-Kenwood (ID = 124516) Amat TRX TS-930S; Trio-Kenwood (ID = 1194861) Amat TRX
TS-930S; Trio-Kenwood (ID = 1919526) Amat TRX TS-930S; Trio-Kenwood (ID = 1919529) Amat TRX
TS-930S; Trio-Kenwood (ID = 1919531) Amat TRX TS-930S; Trio-Kenwood (ID = 1919532) Amat TRX
Use red slider bar for more.

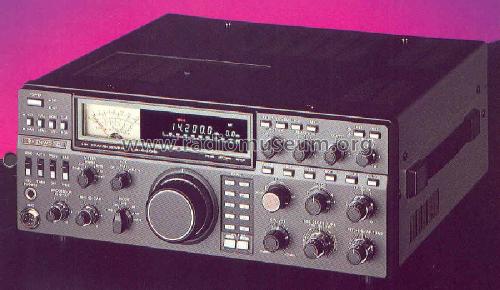

TS-930S; Trio-Kenwood (ID = 124516) Amat TRX
Trio-Kenwood: TS-930S [Amat TRX] ID = 124516 900x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model TS-930S, Trio-Kenwood Electronic Inc.; Komagane:
Q= prospectus

Country:  Japan
Manufacturer / Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name

Trio Corp.
Brand
Jennen
Year: 1982 ?? Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superhet, double/triple conversion; ZF/IF 44930/8830 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: TS-930S - Trio-Kenwood Electronic Inc.;
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 374 x 141 x 350 mm / 14.7 x 5.6 x 13.8 inch
Notes Kenwood Shortwave-Transceiver TS-730S.
Frequency range TX: 160-10 m incl. WARC, RX: 0.15-30 MHz; Modes: SSB, CW, AM, FSK; 8 memories; Speechprocessor; Pout: 100 W (10 m 50 W), AM: 25 W.
Net weight (2.2 lb = 1 kg) 16.8 kg / 37 lb 0.1 oz (37.004 lb)
Price in first year of sale 4'385.00 DM
Mentioned in RICOFUNK-Katalog 1983

Model page created by Iven Müller. See "Data change" for further contributors.
