Tungsram 7066

Orion; Budapest

  • Year
  • 1932/1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23357

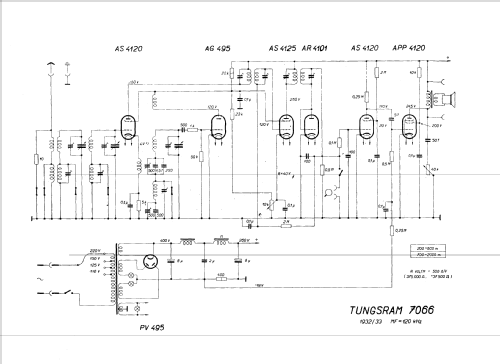

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 120 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-227 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • from Radiomuseum.org
  • Model: Tungsram 7066 - Orion; Budapest
  • Notes
  • Produced by Orion for CS market under Tungsram trade mark, because Tungsram Bratislava started production in 1938 only.

  • External source of data
  • Erb
