CR260AV

CR260AV; Uher Werke; München (ID = 950814) R-Player

CR260AV; Uher Werke; München (ID = 950815) R-Player

CR260AV; Uher Werke; München (ID = 950816) R-Player
CR260AV; Uher Werke; München (ID = 826201) R-Player CR260AV; Uher Werke; München (ID = 826202) R-Player
CR260AV; Uher Werke; München (ID = 826203) R-Player CR260AV; Uher Werke; München (ID = 826204) R-Player
CR260AV; Uher Werke; München (ID = 826205) R-Player CR260AV; Uher Werke; München (ID = 826206) R-Player
CR260AV; Uher Werke; München (ID = 826208) R-Player CR260AV; Uher Werke; München (ID = 826211) R-Player
Use red slider bar for more.

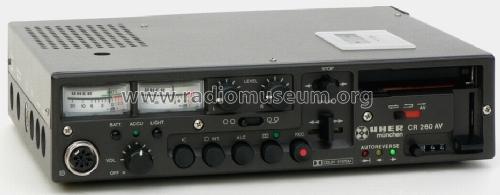

CR260AV; Uher Werke; München (ID = 826201) R-Player
Uher Werke; München: CR260AV [R-Player] ID = 826201 933x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR260AV, Uher Werke; München:
Überarbeitete Freistellung

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1983/1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) BC327 BC337-25 BC368 BC369 BC547 BC548 BC550 BC558 BC584 BD241 SPF321 MC1458 RC4136 TBA820 TL170
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 100-130; 200-250 / 7,5; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (undistorted)
from Radiomuseum.org Model: CR260AV - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 59 x 185 mm / 9.3 x 2.3 x 7.3 inch
Notes

Ähnlich wie CR240AV, nur zusätzlich Autoreversefunktion.

Stromversorgung: Netzteil und Ladegerät Z131, NC-Akku Z215 oder Z217, 6 Babyzellen.

Die Ausgangsleistung beträgt 2x1W Sinus bei Batteriebetrib bzw 2x1,3W Sinus bei externer Stromversorgung.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data -- Original-techn. papers.

Model page created by Felix Kreitlow. See "Data change" for further contributors.
