For model Report 4000 helle Tasten, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1962/1963 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10: TF65 TF65 TF65 TF65 TF66 TF65 TF66 TF66 AC117 AC117 AC117 AC120
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder; Radio Control (+Remote Wire etc)

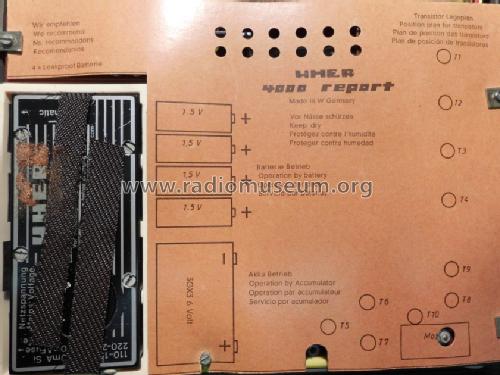

Power type and voltage Batteries / addl. power jack / 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Report 4000 [helle Tasten] - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 85 x 215 mm / 10.6 x 3.3 x 8.5 inch
Notes

Uher 4000 Report.
Zweispur; 2,4/4,75/9,5/19 cm/s. Spulen-Ø 13 cm. Frequenzbereich 50···20000 Hz bei 19 cm/s, 70···5000 Hz bei 2,4 cm/s.
An Stelle der Batterien bzw. des Akkus kann ein Netzteil (110; 125; 150; 220; 240 V~) eingesetzt werden, das auch als Ladegerät Verwendung findet.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 598.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1962/63 / Radiokatalog Band 2, Ernst Erb
