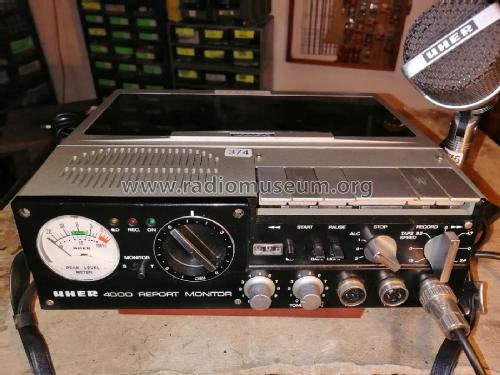

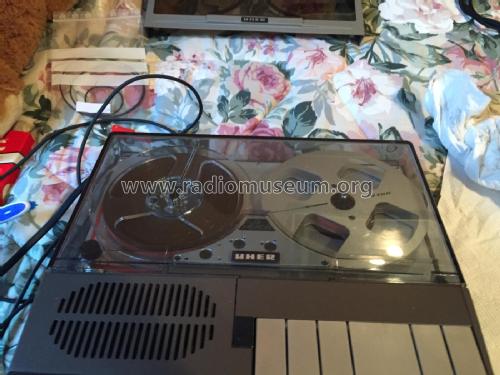

Report 4000 Monitor

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1981 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 85984

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BC212 BC238 BC327 BC337-25 BC368 BC369 BC547 BC548 BC550 BC557 BC558 BC560 BD135 J176 CA3096 MC14555 CD4011 CD4013

• Details
• Tape Recorder

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 100-130; 200-240; 5x 1,5; 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Report 4000 Monitor - Uher Werke; München

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 285 x 100 x 235 mm / 11.2 x 3.9 x 9.3 inch

• Notes
• 2-Spur-Modell; Hinterband-Kontrolle; Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data
• - - Data from my own collection / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by René Goebel † 21.12.23. See "Data change" for further contributors.
