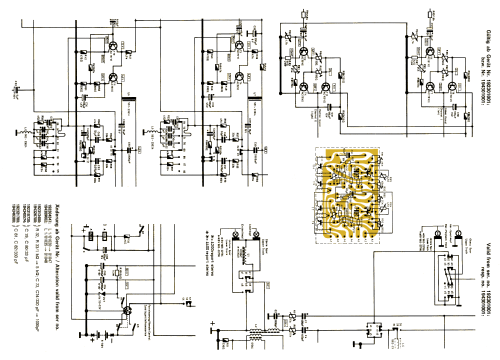

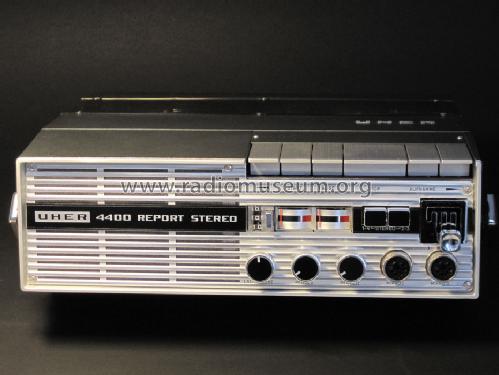

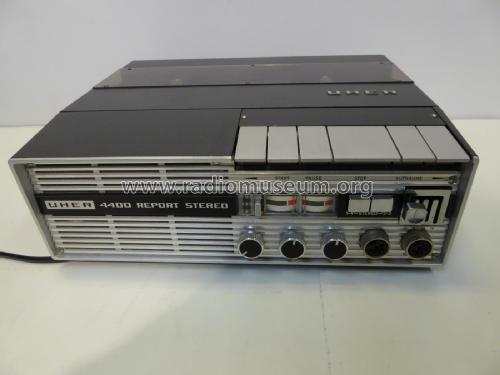

Uher Werke; München: Report Stereo 4400 [R-Player] ID = 1147190 933x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model Report Stereo 4400, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1967–1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 25: AC151VI AC153 AC187 AC188 BC109 BC214 BFY39III
Wave bands - without
Details Tape Recorder
Power type and voltage Other, details in remarks or not known. / 5 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Report Stereo 4400 - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 85 x 215 mm / 10.6 x 3.3 x 8.5 inch
Notes

Es sind nicht alle 25 Transistoren aufgezählt.
Dioden 3 x AA116, ZG3.9, ZL7.
Speisung erfolgt über 5 Monozellen oder ein 6V Blei-Akku Dryfit (Z211) bzw. Netzgerät Z114. Spurlage: international Viertelspur;
Geschwindigkeit: 2,4 /4,75 /9,5 /19 cm/s.

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale 730.00 DM
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
