Royal Stereo 784 e

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1963–1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25065

• Picture
• Schematics

Previous Next

Previous Next

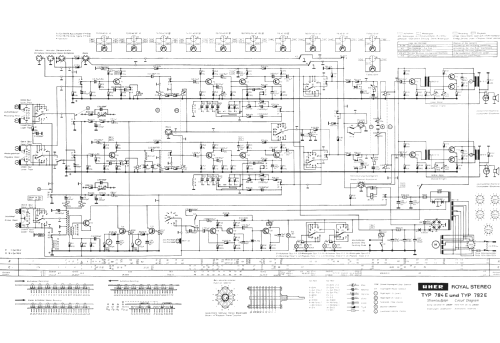

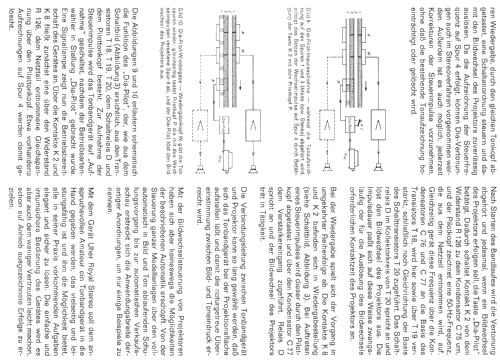

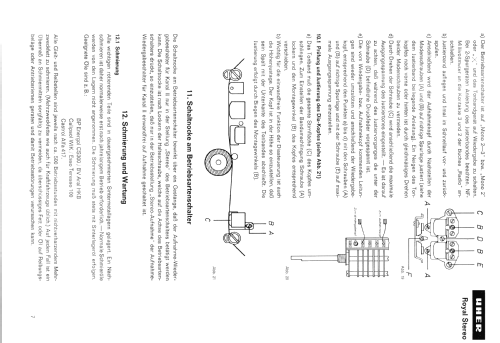

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• AC153 AC151

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder; Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

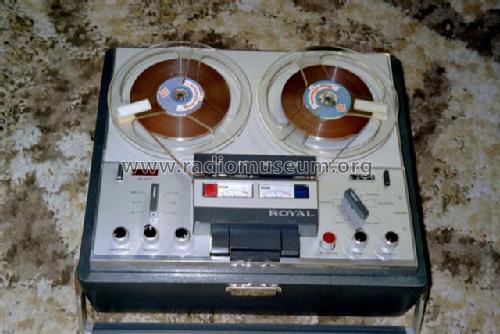

• Model: Royal Stereo 784 e - Uher Werke; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 175 x 350 mm / 14.8 x 6.9 x 13.8 inch

• Notes
• Transistoren: 4× AC153, 16× AC151.
  Vierspur Stereo (auf Wunsch auch Zweispur Stereo); 3 Köpfe; Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s; Spulen-Ø 18 cm. Frequenzgang (19cm/sec.): 50-20000Hz, Vollstereo, Synchroplay, Hall, Echotrick - Diapilot und Mischpult - eingebaut. Anschluss für Akustomat F411.

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Price in first year of sale
• 948.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 341 models, 314 with images and 174 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Uher Werke; München
