• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 192881

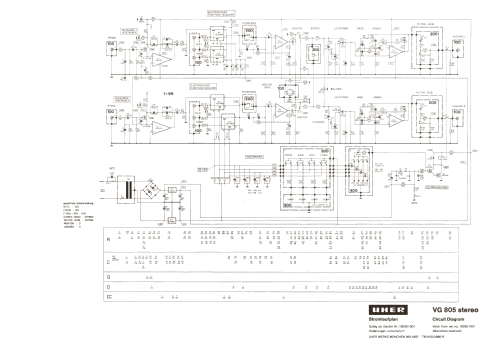

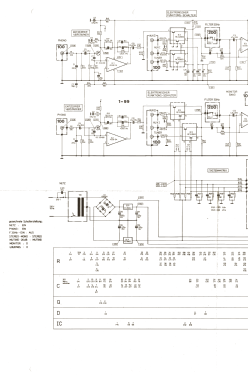

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

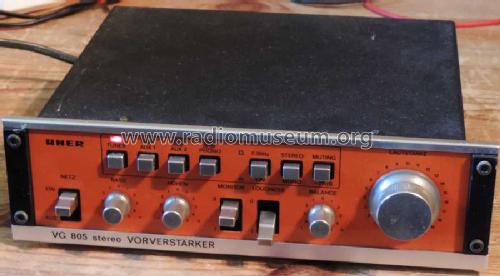

• Model: Stereo-Vorverstärker VG805 - Uher Werke; München

• Shape
• Rack

• Dimensions (WHD)
• 300 x 65 x 225 mm / 11.8 x 2.6 x 8.9 inch

• Notes
• Die Komponenten LG105 (Stereo-Endverstärker), VG805 (Stereo-Vorverstärker), CG305 (Stereo-Kassettendeck) und EG705 (Digital-Tuner) waren vorbereitet für den Einbau in einen Transportkoffer (Case); dieser hatte die Aussenmasse 330 x 310 x 265 mm.

• Mentioned in
• Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
